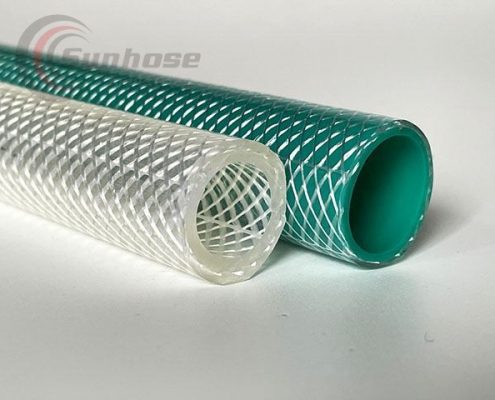

Clear Reinforced PVC Hose

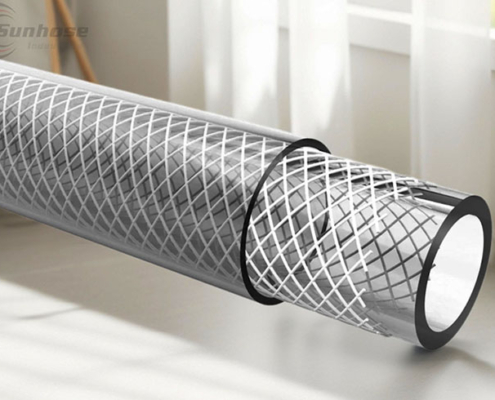

Clear Reinforced Braided PVC Hose is a flexible hose that can be used for medium-pressure applications such as air, water, dilute acids, and oils. Gardening, Irrigation, And General Water Discharge. Clear-reinforced PVC hoses are hoses with a transparent PVC (polyvinyl chloride) tube and a reinforcing layer, typically made of polyester yarn. The clear tube allows for easy visibility of the fluid being transferred, while the reinforcement provides strength and stability to the hose structure

Clear Reinforced PVC Hose

  • Tube:  Transparent Plasticized PVC.
  • Reinforcement: High Tensile Synthetic Textile.
  • Cover: Clear PVC with Blue Tint.
  • Application: For Gardening, Irrigation, And General Water Discharge.
  • Temp. Range. :  – 5 ̊C  to +60 ̊C (23°F to 140°F)
[email protected]

Specification of Clear Reinforced PVC Hose Light Duty

Clear reinforced PVC hoses are versatile, durable, and suitable for various fluid transfer applications. Their transparency, flexibility, and chemical resistance make them a preferred choice in industries, agriculture, aquatic environments, and DIY projects. By considering factors like operating pressure, temperature range, and reinforcement type, you can select the right hose for your specific needs. Remember to follow installation and maintenance tips for optimal performance and prioritize safety during hose usage. With clear reinforced PVC hoses, you can ensure efficient and reliable fluid transfer for your diverse applications.

Part No. Size I.D. O.D. Length W.P. B.P. Weight
# Inch mm mm m/coil Bar Bar kg/m
SHRL0610 1/4″ 6 10 100 10 40 0.07
SHRL0812 5/16″ 8 12 100 10 40 0.08
SHRL1014 3/8″ 10 14 100 9 35 0.10
SHRL1216 1/2″ 12 16 50 7 20 0.12
SHRL1217 1/2″ 12 17 50 8 24 0.15
SHRL1317 1/2″ 13 17 50 7 20 0.13
SHRL1519 5/8″ 15 19 50 6 20 0.14
SHRL1620 5/8″ 16 20 50 6 20 0.15
SHRL1621 5/8″ 16 21 50 7 21 0.19
SHRL1923 3/4″ 19 23 50 4 12 0.17
SHRL1924 3/4″ 19 24 50 4 12 0.22
SHRL2024 3/4″ 20 24 50 4 12 0.18
SHRL2227 7/8″ 22 27 50 4 12 0.25
SHRL2529 1″ 25 29 50 3 9 0.22
SHRL2530 1″ 25 30 50 4 12 0.28
SHRL3238 1-1/4″ 32 38 40 3 10 0.43
SHRL3845 1-1/2″ 38 45 40 3 10 0.59
SHRL4555 1 -3/4″ 45 55 30 3 10 1.02
SHRL5059 2″ 50 59 30 3 10 1.01

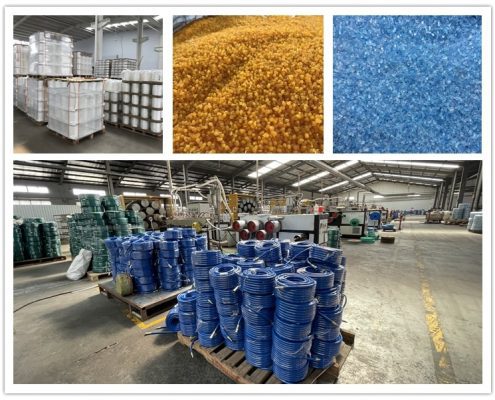

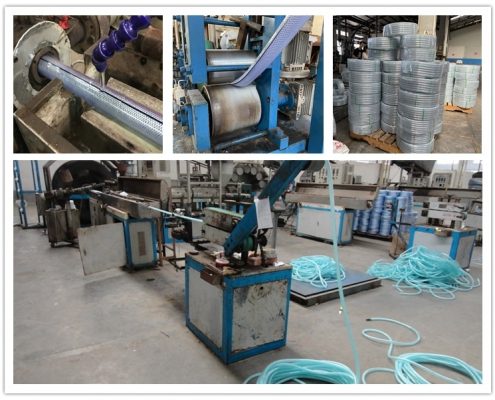

Material and Production of Reinforced Braided PVC Hose

material clear reinforced pvc hose

Package Style of Clear Reinforced PVC Hose

clear pvc braided hose package
