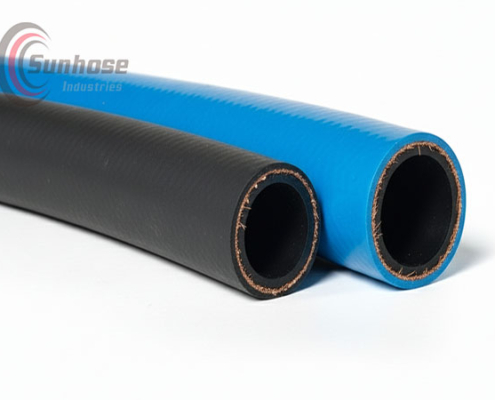

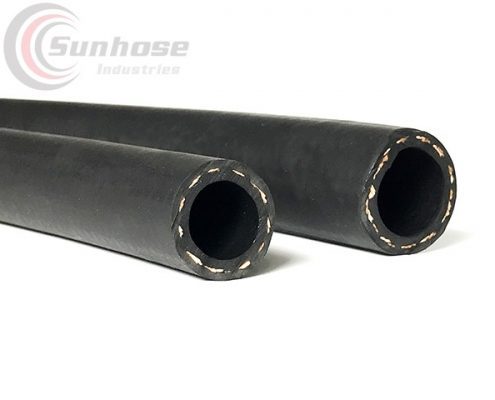

Rubber Fuel & Oil Hose
Rubber fuel oil hose also called flexible reinforced oil hose, reinforced fuel tubing, fuel oil pipeline. It is suitable for the transportation of gasoline, kerosene, engine oil, and lubricating oil or other mineral oil in industrial and mining machinery, oil depots, terminals at normal temperatures.

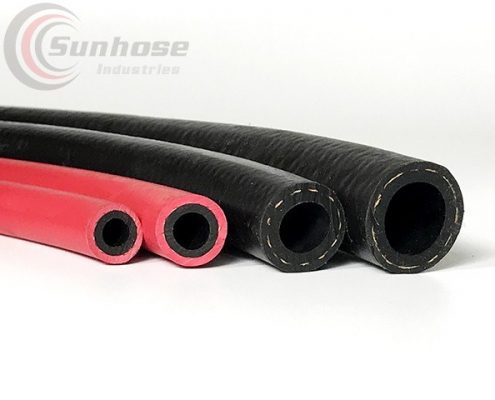

- Tube: Black NBR rubber, smooth.
- Reinforcement: High tensile synthetic yarn braided.
- Cover: Abrasion, ozone and oil-resistant synthetic Nitrile rubber.
- Application: For conveying petroleum-based products, such as fuel, diesel, gasoline, lubricants.
- Temp. Range. :– 30 ̊C to +80 ̊C (22°F to 176°F)
Specification of Rubber Fuel & Oil Hose
Part No. | Size | I.D. | Thickness | Length | W.P. | B.P. | Weight |
# | Inch | mm | mm | m/coil | Bar | Bar | kg/m |
SHRF0512 | 3/16″ | 5 | 3.5 | 100 | 20 | 60 | 0.14 |
SHRF0613 | 1/4″ | 6 | 3.5 | 100 | 20 | 60 | 0.17 |
SHRF0815 | 5/16″ | 8 | 3.5 | 100 | 20 | 60 | 0.23 |
SHRF1017 | 3/8″ | 10 | 3.5 | 100 | 20 | 60 | 0.26 |
SHRF1322 | 1/2″ | 13 | 4.5 | 100 | 20 | 60 | 0.36 |
SHRF1625 | 5/8″ | 16 | 4.5 | 50 | 20 | 60 | 0.53 |
SHRF1929 | 3/4″ | 19 | 5 | 50 | 20 | 60 | 0.64 |
SHRF2536 | 1″ | 25 | 5.5 | 50 | 20 | 60 | 0.85 |
SHRF3243 | 1-1/4″ | 32 | 5.5 | 50 | 10 | 30 | 1.26 |
SHRF3850 | 1-1/2″ | 38 | 6 | 50 | 10 | 30 | 1.42 |
SHRF5165 | 2″ | 51 | 7 | 50 | 10 | 30 | 1.80 |
