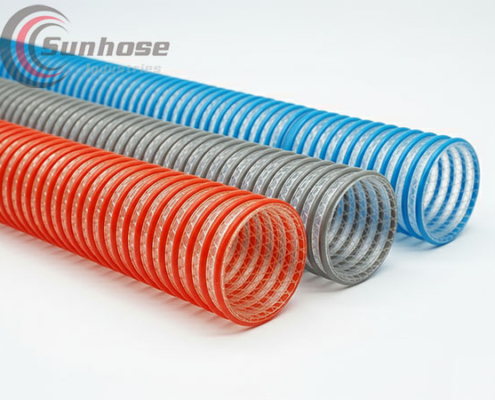

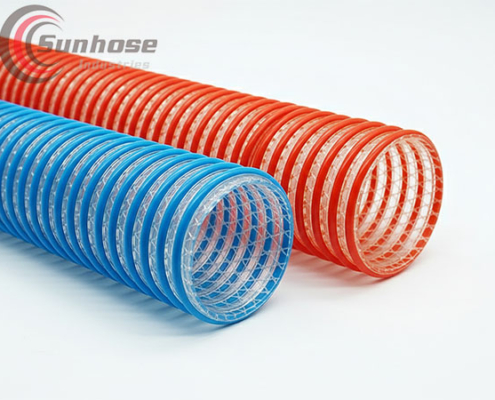

Heavy Duty PVC Fabric Reinforced Suction Hose Corrugated

Heavy Duty PVC Fabric Reinforced suction hoses are called many different names. Such as Spiral Reinforced PVC Suction Hoses, water suction hoses with orange helix, PVC Suction and discharge hoses, Orange PVC grit hoses.

  • Tube:   Flexible PVC clear tube.
  • Reinforcement: Polyester Braid reinforced with an orange PVC helix
  • Cover: Rigid orange PVC right-handed helix.
  • Application: For heavy-duty water suction and discharge, fish suction, and transfer.
  • Temp. Range. :  – 5 ̊C  to +60 ̊C (23°F to 140°F)

Specification of Heavy Duty PVC Fabric Reinforced Suction Hose

Part No. Size I.D. Thickness Length W.P. Bend Radius Weight
# Inch mm mm m/coil PSI mm kg/m
SHSF5060 2″ 50 5 50/30 100 250 1.09
SHSF6374 2-1/2″ 63 5.5 50/30 100 300 1.40
SHSF7687 3″ 76 5.5 50/30 92 300 1.70
SHSF102117 4″ 102 7.5 50/30 90 400 2.60
SHSF127143 5″ 127 8 50/30 60 600 3.42
SHSF152172 6″ 152 10 30/10 50 750 5.50
SHSF203225 8″ 203 11 12/10 50 950 7.96

Material and Production of Heavy Duty PVC Fabric Reinforced Suction Hose

Material of Heavy Duty PVC Fabric Reinforced Suction Hose Corrugated
Production of Heavy Duty PVC Fabric Reinforced Suction Hose Corrugated

Package Style of Heavy Duty PVC Fabric Reinforced Suction Hose

Heavy Duty PVC Fabric Reinforced Suction Hose Corrugated
Package of Heavy Duty PVC Fabric Reinforced Suction Hose
