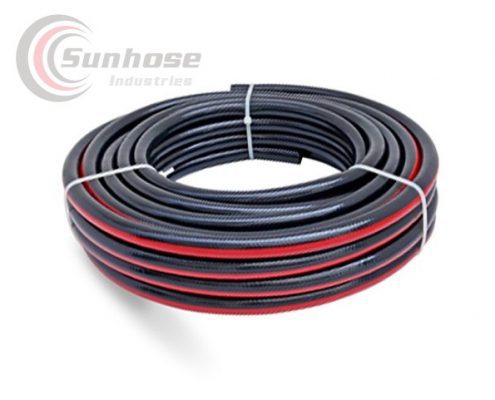

High Pressure PVC Spray Hose

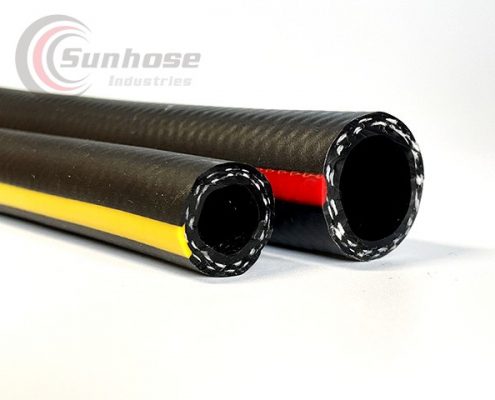

PVC Spray Hose is widely used in the high-pressure washer, air compressors, and pneumatic tools. In agriculture, the high-pressure PVC spray hose is used for spraying of pesticide, fungicide, fertilizer solution.

high pressure black spray hose
  • Tube:  Black Plasticized PVC.

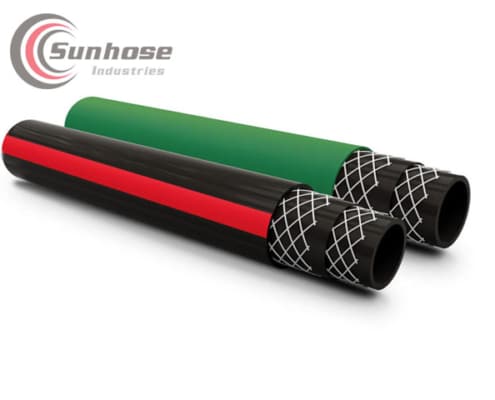

  • Reinforcement: High Tensile Spiral Polyester Yarn 2 layers.
  • Cover: Ribbed Blended PVC & Smooth PVC.
  • Application: For air, water, and moderate chemical.
  • Temp. Range. :  – 5 ̊C  to +60 ̊C (23°F to 140°F)
Get a Quote

Specification of High Pressure PVC Spray Hose

Part No. Size I.D. O.D. Length W.P. B.P. Weight
# Inch mm mm m/coil Bar Bar kg/m
SHSP65135 1/4″ 6.5 13.5 100 40 160 0.14
SHSP85155 5/16″ 8.5 15.5 100 40 150 0.17
SHSP95165 3/8″ 9.5 16.5 100 40 120 0.19
SHSP01017 3/8″ 10 17 50 40 120 0.19
SHSP01220 1/2″ 12 20 50 30 100 0.26
SHSP01626 5/8″ 16 26 50 30 85 0.43
SHSP01929 3/4″ 19 29 50 25 75 0.49
SHSP02535 1″ 25 35 50 25 60 0.61

Material and Production of High Pressure PVC Spray Hose

spray-hose-material
production-spray-hose

Package Style of High Pressure PVC Spray Hose

high pressure spray hose fittings
