Heavy Duty Layflat Water Hose

A heavy-duty layflat water hose is a durable and high-performance hose designed for the transfer of water in demanding applications. It features a flat profile when not in use, allowing for easy storage and transportation. When water pressure is applied, the hose expands and maintains its shape, ensuring efficient water flow. The heavy-duty variant is specifically engineered to withstand rugged conditions and higher working pressures.

The heavy-duty layflat water hose finds application in various industries and settings, including:

Construction: It is used for dewatering construction sites, transferring large volumes of water, and pumping slurry.
Agriculture: The hose is employed for irrigation, water supply, and dewatering in agricultural fields and farms.
Mining: It is used for mine dewatering, water transfer, and handling slurry and mine tailings.
Municipal: The hose is utilized in municipal applications such as water supply, firefighting, and emergency response.
Industrial: It is suitable for industrial water transfer, temporary bypass systems, and general fluid transfer.
Oil and Gas: The heavy-duty layflat water hose is used for water transfer during drilling operations and hydraulic fracturing.

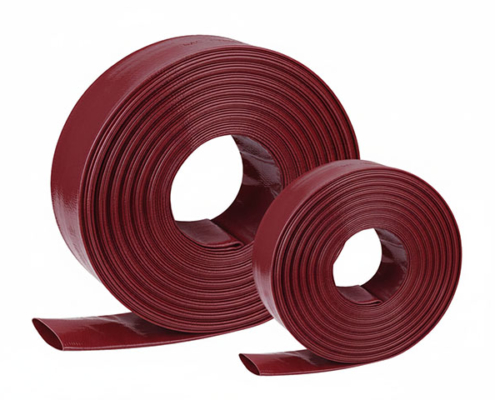

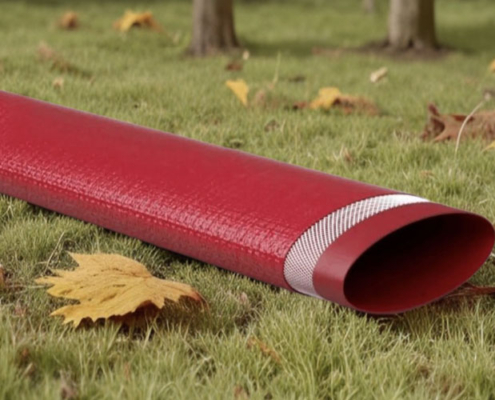

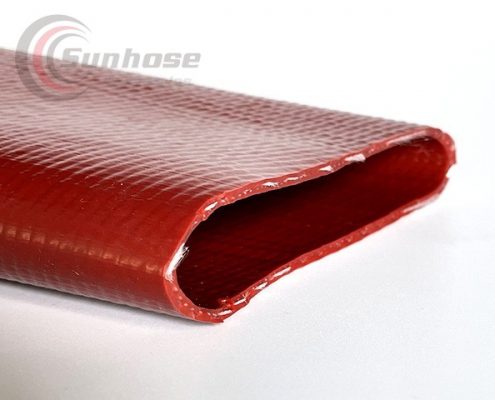

Red heavy duty layflat hose

Tube: Flexible PVC/NBR Lining.

Reinforcement: High Tensile Synthetic Textile.

Cover: Light Chemicals And Weather Resistant PVC Outer Cover.

Application: For Heavy-Duty Discharge Of Water, Light Chemicals, And Other Liquids In Agriculture And Industry.

Temp. Range. : – 5 ̊C to +60 ̊C (23°F to 140°F)

Get a Quote

Specification of Heavy Duty Layflat Water Hose

The heavy-duty layflat water hose offers several advantages that make it a preferred choice for demanding water transfer applications:

High Pressure Capability: The hose is designed to withstand higher working pressures, making it suitable for applications that require robust performance.
Abrasion and UV Resistance: It is constructed with materials that provide excellent resistance to abrasion, punctures, and UV radiation, ensuring durability in harsh environments.
Flexible and Lightweight: Despite its heavy-duty construction, the hose remains flexible and lightweight, allowing for easy handling and deployment.
Efficient Water Flow: The smooth inner lining of the hose minimizes friction, ensuring optimal water flow with minimal pressure loss.
Easy Storage and Transport: The flat profile of the hose enables compact storage and transportation, saving valuable space.
Quick Deployment: The hose can be rapidly deployed, enabling faster response times in emergency situations.

Part No.	Size	I.D.	Thickness	Length	W.P.	B.P.	Weight
#	Inch	mm	mm	m/coil	Bar	Bar	kg/m
SH80020	3/4″	20	1.55	50	10	30	0.14
SH80025	1″	25	1.8	50	10	30	0.20
SH80032	1-1/4″	32	1.5	50	10	30	0.21
SH80038	1-1/2″	38	1.7	50	10	30	0.29
SH80045	1-3/4″	45	2	50	10	30	0.35
SH80051	2″	51	1.55	50	8	24	0.35
SH80051	2“	51	1.8	50	10	30	0.42
SH80064	2-1/2″	64	1.8	50	10	30	0.55
SH80076	3″	76	2	50	8	24	0.66
SH80076	3”	76	2.55	50	10	30	0.85
SH80103	4“	103	2.25	50	8	24	1.00
SH80127	5″	127	2.7	50	10	30	1.20
SH80153	6″	153	3	50	8	24	2.00
SH80203	8″	203	3.2	50	6	18	2.80
