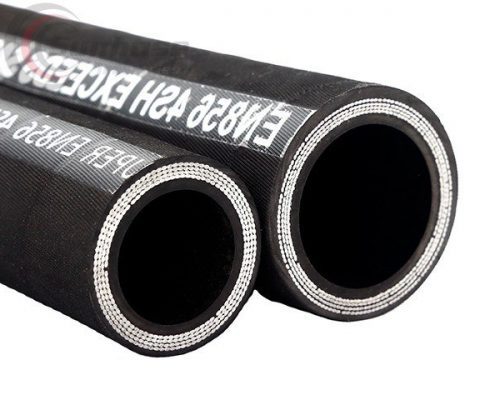

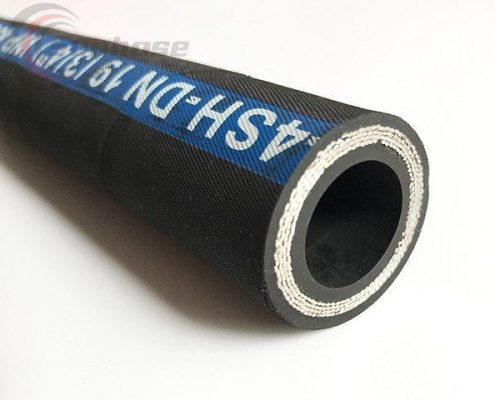

Hydraulic Hose DIN EN 856 4SH

Hydraulic Hose DIN EN 856 4SH very high pressure, pulsating applications used for petroleum-based hydraulic fluids. wire wrapped in alternating directions, and oil and weather-resistant synthetic rubber cover.4sh high-pressure hose. The DIN EN 856 4SH hydraulic hose is designed for high-pressure hydraulic systems. It features a synthetic rubber inner tube, four layers of spiral-wound high-tensile steel wire reinforcement, and a synthetic rubber cover. This hose is compatible with petroleum-based hydraulic fluids

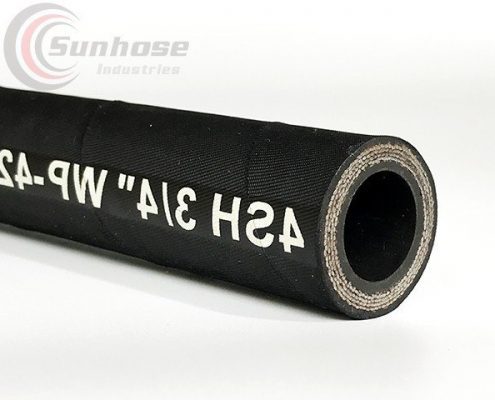

4SH 3/4″ hydraulic hose

  • Tube:  Oil resistant synthetic rubber.
  • Reinforcement: Four alternating layers of spiraled high-tensile steel wire.
  • Cover: Abrasion and weather resistant synthetic rubber.
  • Application: Very high pressure, pulsating applications used for petroleum-based hydraulic fluids.
  • Temp. Range. :  -40°C To +100°C (-40°F To +212°F)
Get a Quote

Specification of Hydraulic Hose DIN EN 856 4SH

When selecting a DIN EN 856 4SH hydraulic hose, consider the following factors:

  • Size and Length: Choose the appropriate hose size and length that match the requirements of your hydraulic system.
  • Pressure Rating: Ensure that the hose has a pressure rating suitable for your hydraulic system’s operating pressure.
  • Fluid Compatibility: Confirm that the hose is compatible with the hydraulic fluid used in your system, particularly if you are using specialty fluids.
  • Application Specifics: Consider the specific application and conditions in which the hose will be used, such as temperature range, environmental factors, and potential exposure to chemicals or other substances.
Part No. SIZE SAE I.D W.D O.D W. P P.P B.P min B.R W.T
# mm inch Dash Min Max Min Max Min Max Mpa Psi Mpa Psi Mpa Psi inch mm Kg/m
SH4SH19 19 3/4″ -12 18.6 19.8 27.6 29.2 31.4 33 42 6090 84 12180 168 24360 11.02 280 1.70
SH4SH25 25 1″ -16 25 26.4 34.4 36 37.5 39.9 38 5510 76 11020 152 22040 13.39 340 2.50
SH4SH32 31.5 1-1/4″ -20 31.4 33 40.9 42.9 43.9 47.1 32.5 4710 65 9425 130 18850 18.11 460 3.00
SH4SH38 38 1-1/2″ -24 37.7 39.3 47.8 49.8 51.9 55.1 29 4205 58 8410 116 16820 22.05 560 3.60
SH4SH51 51 2″ -32 50.4 52 62.2 64.2 66.5 69.7 25 3625 50 7250 100 14500 27.56 700 5.00

Material and Production of Hydraulic Hose DIN EN 856 4SH

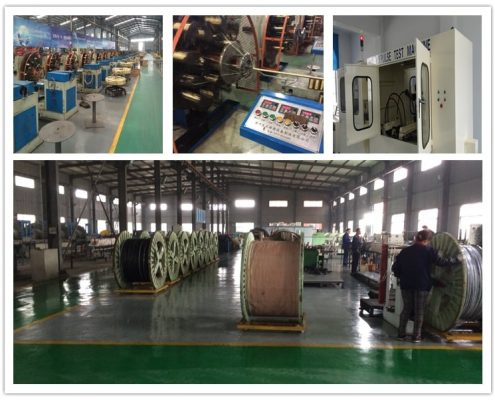

Plant of hydraulic hose
workshop of hydraulic hose

Package Style of Hydraulic Hose DIN EN 856 4SH

Package style of hydraulic hose
