PVC Steel Wire Hose

PVC steel wire hose is widely used for the suction and discharge of water, oil, and powder in the factory, agriculture, engineering, and sanitation lines. In shipyards, industries, buildings, agricultural, and industrial machinery. A PVC steel wire-reinforced suction hose is a type of hose designed for efficient fluid transfer. It consists of a PVC inner tube, a steel wire helix reinforcement, and a PVC outer cover. This construction gives the hose excellent flexibility, strength, and resistance to external pressures.

  • Tube:  Very Flexible And Smooth, Transparent Plasticized PVC.
  • Reinforcement: Shock Resistant Galvanized Steel Spiral Wire.
  • Cover: Crushing, Abrasion, And Weather Resistant, Smooth Outside.
  • Application: For Suction And Delivery Of Water, Mineral Water, Fruit juices, Liquids etc. In shipyards, Industries, Buildings, Agricultural, And Industrial Machineries.
  • Temp. Range. :  – 5 ̊C  to +60 ̊C (23°F to 140°F)

Specification of PVC Steel Wire Hose Light Duty

The steel wire helix reinforcement in a PVC steel wire reinforced hose provides structural integrity and prevents the hose from collapsing under vacuum or high pressure. The PVC inner tube allows a smooth flow of fluids, while the PVC outer cover protects the hose from abrasion and environmental factors. Together, these components ensure efficient suction and delivery of fluids.PVC steel wire reinforced hoses provide a reliable and durable solution for various fluid transfer applications. Their flexibility, strength, and resistance to wear make them a popular choice in industries ranging from agriculture to construction.

Part No. Size I.D. O.D. Length W.P. B.P. Weight
# Inch mm mm m/coil Bar Bar kg/m
SHSS0914 3/8″ 9 14 100 6 18 0.15
SHSS1015 3/8″ 10 15 100 6 18 0.16
SHSS1217 1/2″ 12 17 100 6 18 0.17
SHSS1521 5/8″ 15 21 100 6 18 0.25
SHSS1924 3/4″ 19 24 50 5 15 0.25
SHSS2529 1″ 25 29 50 4 12 0.26
SHSS2530 1″ 25 30 50 4 12 0.35
SHSS3236 1-1/4″ 32 36 50 3 9 0.40
SHSS3238 1-1/4″ 32 38 50 3 10 0.50
SHSS3239 1-1/4″ 32 39 50 3 10 0.60
SHSS3842 1-1/2″ 38 42 50 3 9 0.50
SHSS3844 1-1/2″ 38 44 50 3 9 0.60
SHSS3845 1-1/2″ 38 45 50 3 9 0.80
SHSS4550 1-3/4″ 45 50 50 3 9 0.60
SHSS4552 1-3/4″ 45 52 50 3 9 0.80
SHSS4854 1-7/8″ 48 54 50 3 9 0.81
SHSS4856 1-7/8″ 48 56 50 3 9 1.00
SHSS5055 2″ 50 56 50 3 9 0.89
SHSS5057 2″ 50 57 50 3 9 1.00
SHSS5060 2″ 50 60 50 3 9 1.40
SHSS5865 2-5/16″ 58 65 30 2 6 1.20
SHSS6472 2-1/2″ 64 72 30 2 6 1.50
SHSS6475 2-1/2″ 64 75 30 2 6 2.00
SHSS7684 3″ 76 84 30 2 6 1.60
SHSS7687 3″ 76 87 30 2 6 2.50
SHSS90102 3-1/2″ 90 102 20 2 6 3.00
SHSS102112 4″ 102 112 20 2 6 2.80
SHSS102114 4″ 102 114 20 2 6 3.10
SHSS110123 4-3/8″ 110 123 20 2 6 3.60

Material and Production of PVC Spring Wire Suction Hose

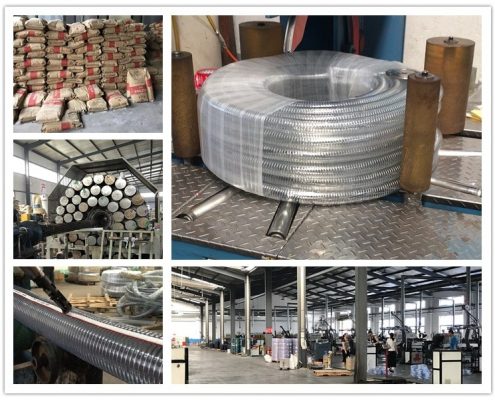

material of clear pvc wire reinforced flexible hose

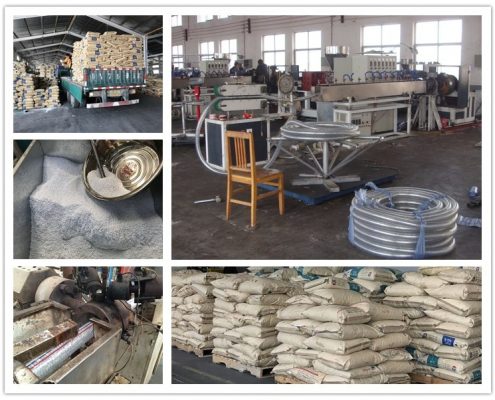

production of wire reinforced pvc hose

Package Style of PVC Steel Spring Wire Suction Hose

package of wire reinforced pvc hose
package of steel wire reinforced suctoin hose
